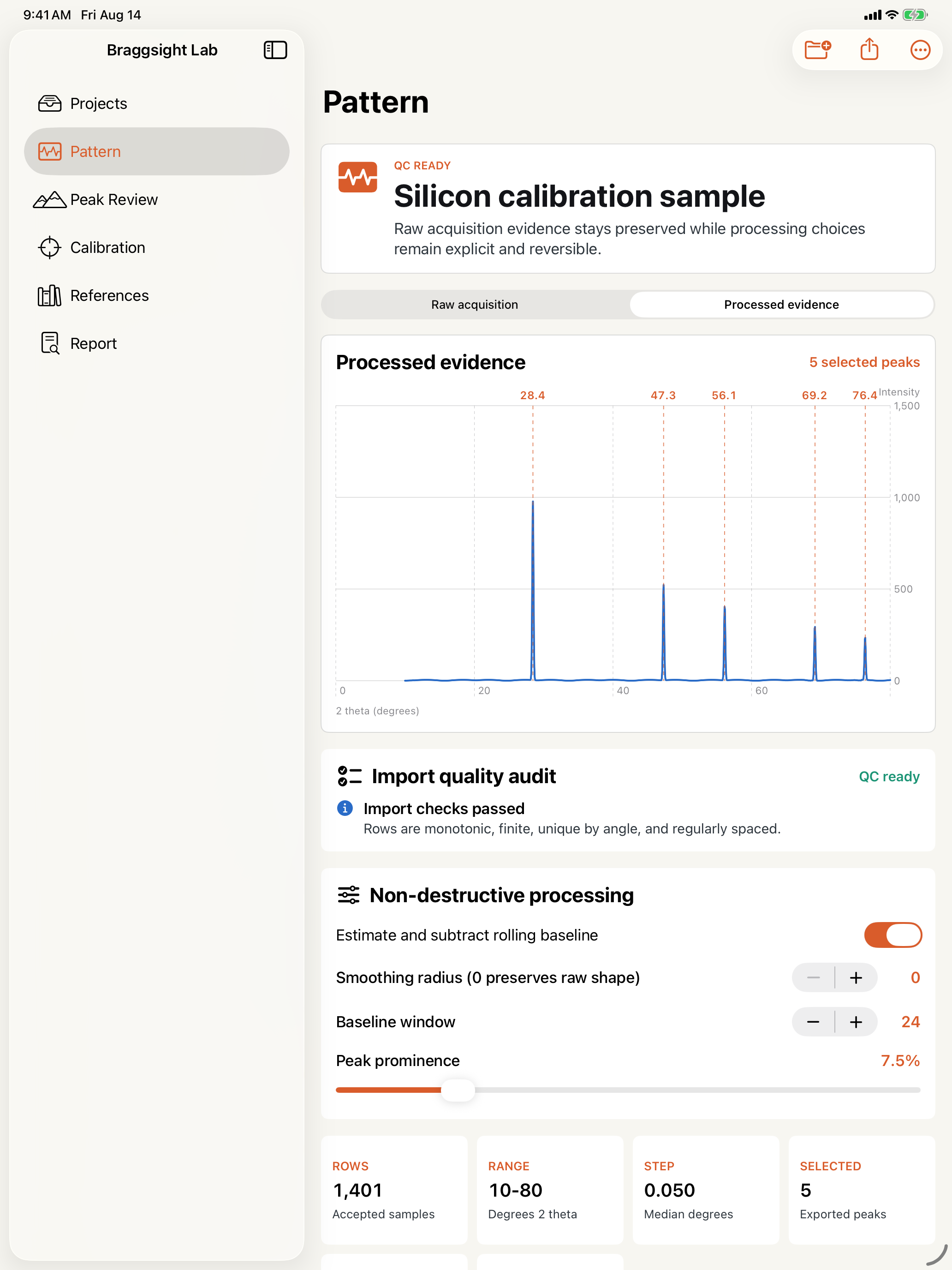

Braggsight showing a processed powder XRD trace, selected peaks, and import quality audit

Offline powder diffraction workspace for iPhone and iPad

Braggsight: XRD Lab

Preserve the raw scan. Make every processing choice visible. Hand off a report with the numerical evidence needed to reproduce or challenge it.

See the workflowOpen support

A run record, not a disposable plot

From imported trace to auditable handoff

Braggsight keeps specimen context, source bytes, settings, exclusions, and results in one local project while leaving the original numerical trace untouched.

01

Preserve provenance

Import angle and intensity text or CSV data into a named run. Braggsight records the original file, byte count, import context, and SHA-256 fingerprint.

02

Audit the scan

Review malformed rows, duplicate angles, acquisition ordering, negative intensities, signal variation, and irregular step spacing before interpretation.

03

Calibrate visibly

Apply an explicit zero-shift offset, record the wavelength and instrument profile, and compare observed and instrument-corrected peak widths.

04

Export the evidence

Create a PDF report, untouched raw CSV, processed CSV, selected-peaks CSV, and JSON manifest with settings, QC findings, source hash, and method links.

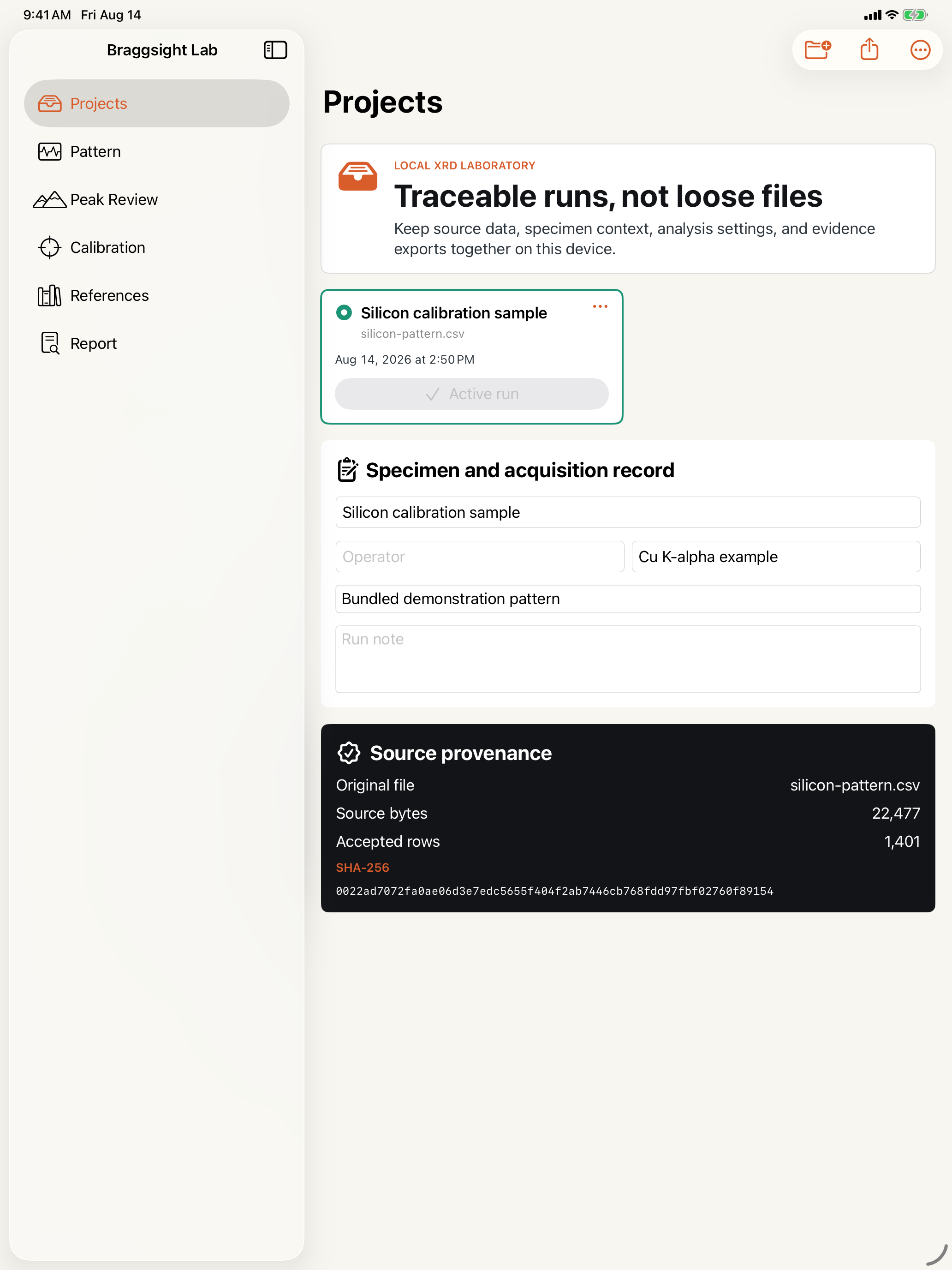

Braggsight Projects view with specimen context and a SHA-256 source fingerprint

Non-destructive by default

Raw and processed evidence stay side by side

Smoothing begins at zero. Baseline estimation can be disabled. Calibrated angles do not overwrite raw angles, and excluded peaks remain part of the saved analysis record.

  • Multiple saved runs with atomic persistence and a local recovery backup
  • Peak inclusion, annotation, d-spacing, FWHM, and transparent Scherrer assumptions
  • Broadening correction suppressed when the observed width is unresolved
  • NIST and IUCr primary-method links inside the app and JSON manifest
  • No account, subscription, ads, analytics, tracking, or required network

Responsible interpretation

Screening leads are not phase identification

Braggsight compares selected peak positions with a small, visible screening set. Confirm phases and size estimates with suitable standards, calibrated instrumentation, full-pattern refinement, and a validated structure database.

NIST Powder Diffraction SRMs NIST ICSD IUCr Powder Data Guidance

Private by design

Your laboratory workspace stays on your device

Source scans, specimen details, settings, notes, and reports are handled locally. A file leaves only when you build an evidence bundle and choose a destination through Apple’s share sheet.
